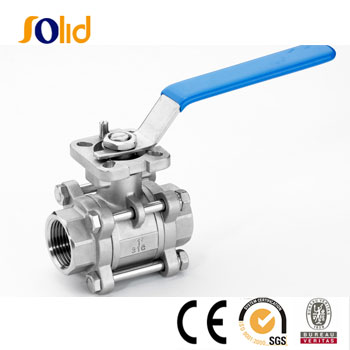

Stainless Steel Full Bore 3PC Ball Valve
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300 °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)
Female threaded or socket welded end
Handle with locking device
Ball valve is a form of quarter-turn valve which uses a floating ball to control flow through it.
3PC flanged ball valves are generally slightly reduced (or standard) bore, they can be either throw-away or repairable.
| Product Name |
Stainless Steel Full Bore 3PC Ball Valve |
| 1. Material |
A351 CF8M/CF8/CF3/CF3M, WCB, etc. |
| 2. Size |
1/2''~4'' ( DN15~DN100) |
| 3.Certificate |
ISO9001 & CE |
| 4. Port |
Full Port |
| 5. Working Pressure |
PN16~PN40 |
| 6. Connection Ends |
Flange(RF/RTJ) |
| 7. Working Temp |
-20~280ºC |
| 8. Suitable Medium |
Water, Steam, Oil and natural gas etc. |
| 9. Seal |
PTFE, RPTFE, PPL |
| 10. Locking |
Optional |
| 11. Inspection & Testing |
According to EN12266 |
| Shipment |
|
| Delivery Time |
7~30 Days |
| Package |
Standard Exporting Plywood Case |
| Shipping Terms |
Exw, FOB, CFR, CIF, etc. |
| Payment Terms |
T/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL |
| Warranty |
12 Months after leaving factory |
| Advantage |
OEM/ODM is applicable |
| Others |
We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer
|
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
