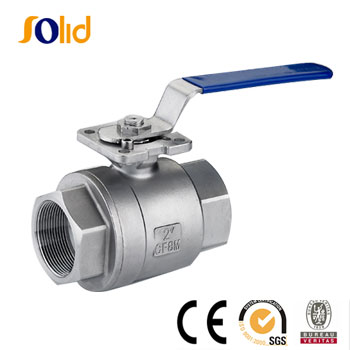

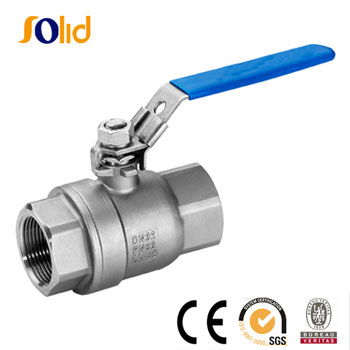

Stainless Steel Full Bore 2PC Ball Valve
Materials: CF8, CF8M
Dimension: 1/4"-4"
Working pressure: 1000WOG, 2000WOG
Temperature range: -40 °C~ 300  °C
End types: Threaded(NPT, BSP, BSPT, DIN2999)

Handle with locking device



Specification Nominal Pressure 1.6~6.4MPa PN1.0~4.0MPa (Apply to Internal thread ball valve and welded ball valve) Working Temperature -20~232ºC~350ºC Applicable Medium Water, oil, gas and some corrosive liquid (W.O.G) Screw Type G·NPT.BSPT.BSP.DIN259/2999 Drive mode Manual/ electric/ pneumatic. Connection Type Butt welding (BW) /Socket welding (SW)   If you want to know more details, please send an email to us to solidvalves@aliyun.com.
