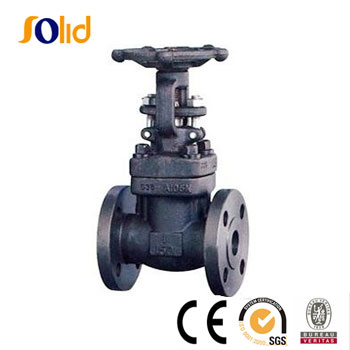

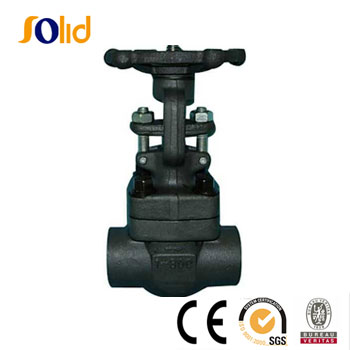

Forged steel gate valve
- Design and manufacturing: API 602
- Ends connection:
- SW dimension: ANSI B16.11
- Screwed dimension: ANSI B1.20.1
- BW dimension: ANSI B16.25
- Flange dimension: ANSI B16.5

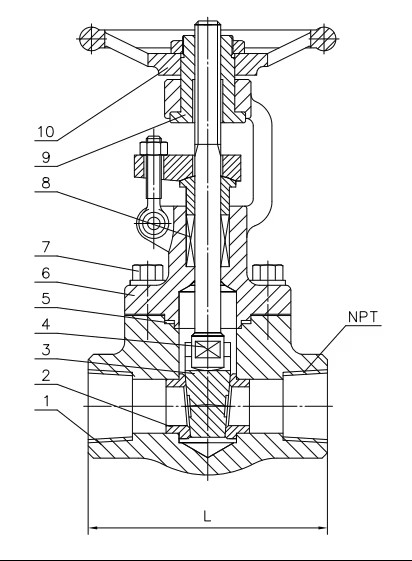

- Construction Feature: Bolt Bonnet (BB) and Outside Screwed Yoke (OS&Y) or Welded Bonnet (W.B) and Outside Screwed Yoke (OS&Y)
- Test and inspection: API 598
- Body material: A105、F304、F316、F304L、F316L、F5、F11、F22
Pressure: 150LB-1500LB
Product Description
| Pressure rating and size: |
150LB - 2500LB |
| DN15 to DN50 |
| 1/2"~2" |
| Material: |
Body : A105,LF2,F11+HF,F304(L),F316(L),F51 |
| Disc : F6a,F304,F304(L),F316(L),F51GG2 |
| Stem : 410,304,304(L),316(L),F51 |
| Bonnet : A105,LF2,F11+HF,F304(L),F316(L),F51 |
| Operated type |
Handwheel, Gear, Electric, Bare shaft and etc. |
| Structure: |
Rising stem or non-rising stem |
| Flange connection: |
EN1092, ANSI B16.5, BS4504, JIS B2212 |
| Medium: |
Water |
| Temperature: |
80°C |
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
