Product Name:
Forged Steel Check Valve

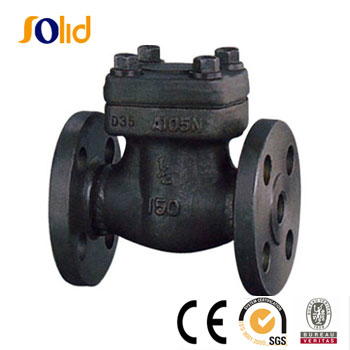

  • Forged Steel Check Valve

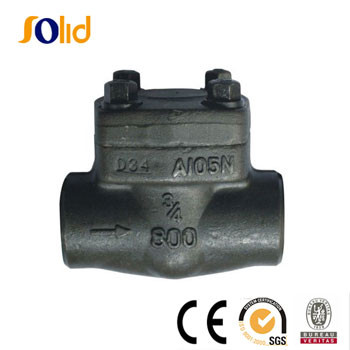

  • Forged Steel Check Valve
Describe:

Forged steel check valve

  1. Design and manufacturing: API 602, BS5352, ASME/ANSI B16.34
  2. Ends connection:
    1. SW dimension: ANSI B16.11
    2. Screwed dimension: ANSI B1.20.1
    3. BW dimension: ANSI B16.25
    4. Flange dimension: ANSI B16.5
  3. Construction Feature: Bolt Bonnet (BB) and Outside Screwed Yoke (OS&Y) or Welded Bonnet (W.B) and Outside Screwed Yoke (OS&Y), Swing Type or Lifting Type
  4. Test and inspection: API 598
  5. Body material: A105F304、F316、F304L、F316L、F5、F11、F22
  6. Pressure: 150LB-1500LB

  7. The Major Parts Material

    Name Material
    Body CF8/304,CF3/304L,CF8M/316,CF3M/316L
    Type of thread NPT, BSPT, BSPP, BSP, PT, DIN2999, DIN259, ISO228
    Size range 1/2"~4"(DN15~DN100)
    Type of Port Full Port
    Connection Thread End















    If you want to know more details, please send an email to us to solidvalves@aliyun.com.
