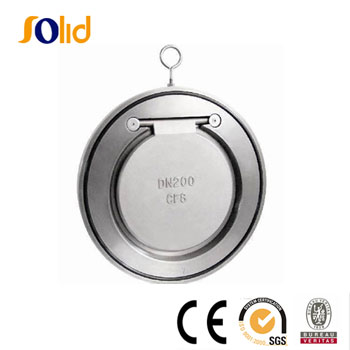

Wafer Swing Check Valve
Material: ASTM A216 WCB, ASTM A351 CF8，ASTM A351 CF8M, ASTM A351 CF3，ASTM A351 CF3M
Pressure: PN10-PN40
Product Description
1. Working pressure: 1.0Mpa/1.6Mpa/2.5Mpa/4.0Mpa
2. Working temperature:
NBR: 0ºC~+80ºC
EPDM: -10ºC~+120ºC
VITON: -20ºC~+180ºC
3. Face to face according to DIN, ANSI
4. Flange according to EN1092-2, ANSI 125/150 etc.
5. Testing: DIN3230, API598
6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.
MATERIAL:
| NO. |
PART |
MATERIAL |
| 1 |
Body |
SS304/SS316/WCB |
| 2 |
Disc |
SS304/SS316/WCB |
| 3 |
Ring |
Steel |
| 4 |
Baffle |
SS304/SS316/WCB |
| 5 |
O-Ring |
NBR/EPDM/VITON |
| 6 |
O-Ring |
NBR/EPDM/VITON |
| 7 |
Bolt |
SS304/SS316/WCB |
| 8 |
Backing Plate |
SS316/SS304 |
| 9 |
Spring |
SS316/SS304 |
| 10 |
Shaft |
SS304/SS316 |
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
