Home > product >cast steel valve>API globe valve

API steel valve DIN steel valve


Product Name:

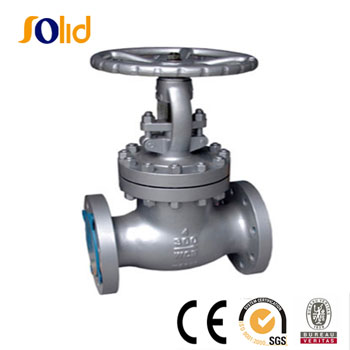

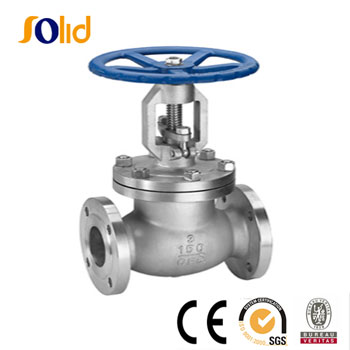

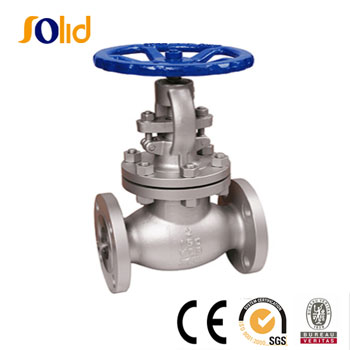

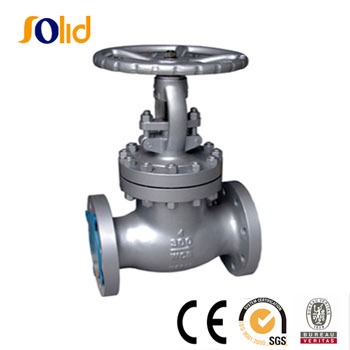

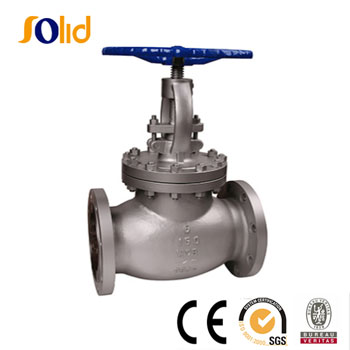

API Globe Valve
  • API Globe Valve
  • API Globe Valve
  • API Globe Valve
  • API Globe Valve
  • API Globe Valve
Describe:

Material: ASTM A216 WCB, ASTM A351 CF8,ASTM A351 CF8M, ASTM A351 CF3,ASTM A351 CF3M, ASTM A352 LCB, ASTM A217 WC6 and ASTM A217 WC9

Bolted Bonnet, Outside Screw & Yoke,rising stem

Size: 1/2”-24”

Pressure: 150LB, 300LB, 600LB, 900LB,1500LB

Design and manufacture: ANSI B16.34 and BS 1873

Face to face dimension: ANSI B16.10

Flange end: ANSI B16.5

Butt welded: ANSI B16.25

Test and inspection: API 598


Cast Steel Globe Valvesare valves with flanged or butt welding end connection designed with BS 1873 or API 627 standards and widely used in oil, gas, and petrochmeical industry.



1 Comply with API 6D
2 Face to face ANSI B16.10
3 Flange End ANSI B16.5
4 Suitbale water ,oil,gas
5 DN15-D1000













Material Specification
Part Material
Body WCB CF8 CF8M
Stem 2Cr13
Seal 13CR STL
Gasket flexible graphite 13Cr/F304/F316
Packing flexible graphite

















Impact handwheel: Globe valves require higher closing torque and gate valves with same seat diameter and pressure class. The most economical mechanism for tight shutt off is the impact handwheel.



If you want to know more details, please send an email to us to solidvalves@aliyun.com.
