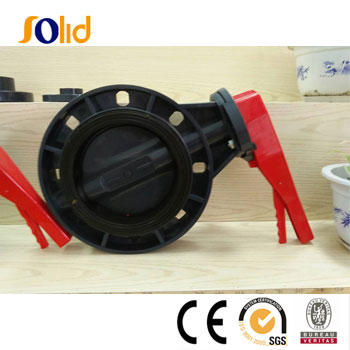

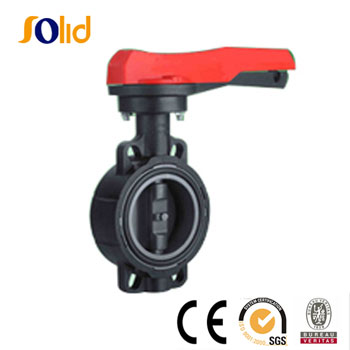

PVC Butterfly valve
1. Material: U-PVC, C-PVC
2. Standard: ANSI、DIN、JIS、ISO4422
3. Pressure: PN10/PN16
4. Operation type: lever, electric, pneumatic
5. Size: DN40~DN200(1-1/4 inch-8 inch)
6. wafer connection: DIN PN10; ANSI CL 150; JIS 10k
7. body material: PVC-U;PVDF;PP
8. disc material: PVC-U;PVDF;PPG;PP-H
9. seat material: EPDM;FPM;Viton
10. operator: hand lever
| Product Name |
PVC Handled Butterfly Valve |
| Materials |
PVC |
| Sizes |
63mm-315mm |
| Colors |
Dark grey and red handle; many colors, as customer request |
| Connections |
flanges |
| Pressures |
PN1.0 |
| seat |
EPDM/FPM |
| Standards |
ISO 4422/JIS/ASTM/CNS/ANSI/DIN |
| Certifications |
ISO14001,ISO9001 |
If you want to know more details, please send an email to us to solidvalves@aliyun.com.
|
|
