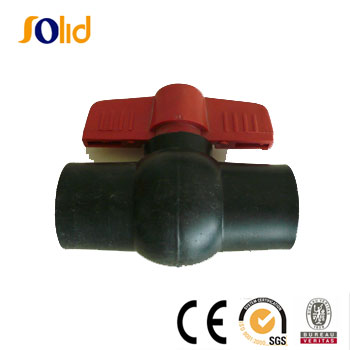

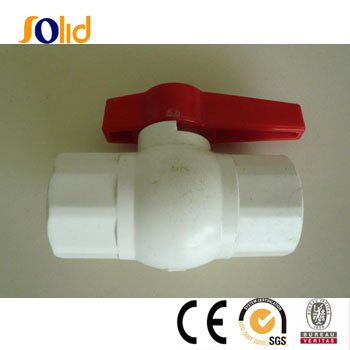

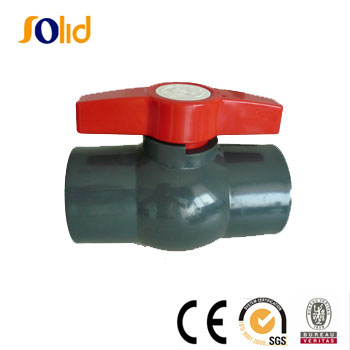

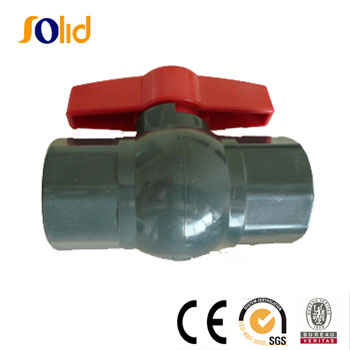

PVC Compact ball valve
1. Material: U-PVC, C-PVC
2. End connector: thread, socket
3. Standard: ANSI、DIN、JIS、ISO4422
4. Pressure: PN10/PN16
valves;can be made from a variety of materials, but PVC is the most often chosen one.What makesthese so popular is their durability. The material is rust-proof and maintenance-free,so they can be used in outdoor applocations where they are not needed very often, but when they are needed it is critical that they work properly.
They also can be used in chemical mixing applications, where corrosion would be a serious problem. The high pressure resistance of PVC also makes it popular for applications where liquid flows at a high pressure. When the valve is open, there is minimal drop in pressure because the port of the ball is almost identical in size to the port of the pipe.
Technical Information:
| Product |
Plastic Valve |
| Material |
Body---PVC
Handle---PP or ABS
Ball---PVC, PP
Seat Seal---PTFE, TPE
O-Ring---EPDM, FPM, NBR
|
| Product Description |
Handle Type: Butterfly Handle or Lever Handle
Pressure: PN16
Temperature of media: 15-75degree
Connector type: socket end
|
| Available Color |
White, Grey, Black.,Blue |
| Available Size(mm) |
20, 25, 32, 40, 50, 63, 75, 90, 110. |
| Available Size(inch) |
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 8". |
| Branding |
Flowguard or OEM is Acceptable |
| Applicable Standard |
ANSI, DIN, JIS, BS |
| PRODUCT |
Size |
WEIGHT(g) |
PCS/CTN |
| Inch |
mm |
| Compact Plastic Valve With Socket End |
1/2'' |
20 |
64 |
320 |
| 3/4'' |
25 |
94 |
200 |
| 1'' |
32 |
159 |
120 |
| 1-1/4'' |
40 |
250 |
84 |
| 1-1/2'' |
50 |
368 |
60 |
| 2'' |
63 |
606 |
36 |
| 2-1/2" |
75 |
1067 |
20 |
| 3" |
90 |
1583 |
10 |
| 4" |
110 |
2832 |
6 |
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
| |
|
