Home > product > forged steel valve > forged steel ball valve

forged steel valve


Product Name:

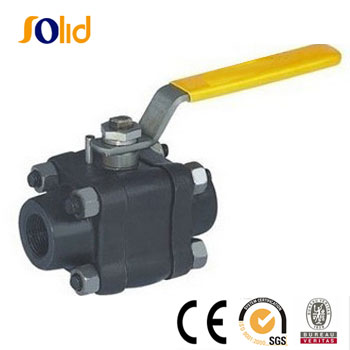

3PCS Forged Steel Ball Valve
  • 3PCS Forged Steel Ball Valve
Describe:

3PCS Forged steel ball valve

  1. Design and manufacturing: BS5351, MSS SP-118
  2. Ends connection:
    1. SW dimension: ANSI B16.11
    2. Screwed dimension: ANSI B1.20.1
    3. BW dimension: ANSI B16.25
    4. Flange dimension: ANSI B16.5
  3. 3PC forged steel body, bolted bonnet
  4. Test and inspection: API 598
  5. Body material: A105F304、F316、F304L、F316L、F5、F11、F22
  6. Pressure: Class 800 (2000PSI), Class 1500

  7. Product Description

    Material Stainless Steel: SS304, SS316, 1.4401, 1.4301, CF8, CF8M
    Type 1PC Ball Valve, 2PC Ball Valve, 3PC Ball Valve, 3-Way Ball Valve, Swing Check Valve, , Wafer Check Valve, Vertical Check Valve, Y-Strainer, Gate Valve, Globe Valve,Butterfly Valve
    Class 1000PSI, 2000PSI, 3000PSI, 200PSI, 800PSI
    Standard Design: DIN3202-M3, DIN3357, EN12516, ASME B16.34
    Testing: API598, EN12266, JIS, BS
    Size 1/8” to 4” for Threaded End, 1/2” to 12” for Flange End
    Connection RF FF RTJ
    Application NPT, BSP, BSPT, DIN2999, Flange End



    If you want to know more details, please send an email to us to solidvalves@aliyun.com.
