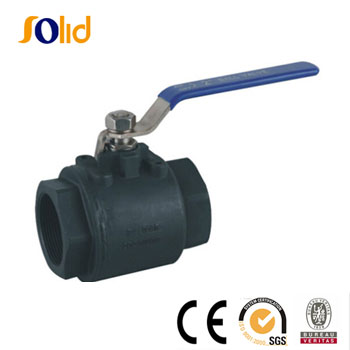

2PCS Forged steel ball valve

1. Design and manufacturing: BS5351
2. Ends connection:
1. SW dimension: ANSI B16.11
2. Screwed dimension: ANSI B1.20.1
3. BW dimension: ANSI B16.25
4. Flange dimension: ANSI B16.5
3. 2PC forged steel body, anti-static device, fire-safety
4. Test and inspection: API 598
5. Body material: A105、F304、F316、F304L、F316L、F5、F11、F22
6. Pressure: Class 800 (2000PSI)
9.


   Standard compliance:

   1) Design and manufacture: BS5351

   2) Test and inspection: API598

   3) Face to face dimensions: ANSI B16.10

   4) Flange end: ANSI B16.10

   5) Fire safe: API607, API6FA



   Specifications:

   1) Size: 1/4" to 4"

   2) Class: 150LB to 2500LB

   3) Type: Floating ball, full bore or reduced bore, soft seated or metal seated, side entry, two-piece/three-piece

   4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, MONEL, ALLOY 20 etc

   5) Operation: Lever



   If you want to know more details, please send an email to us to solidvalves@aliyun.com.
