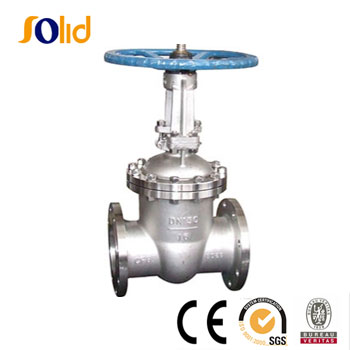

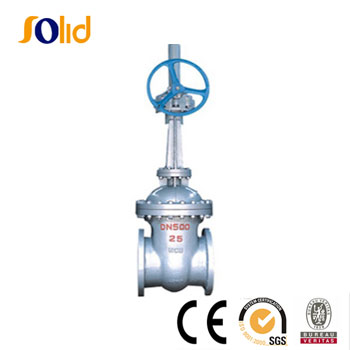

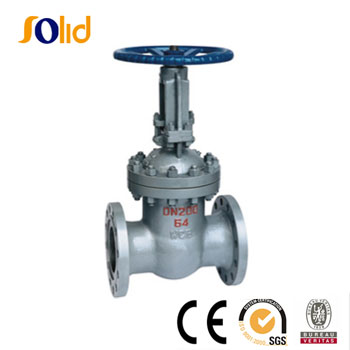

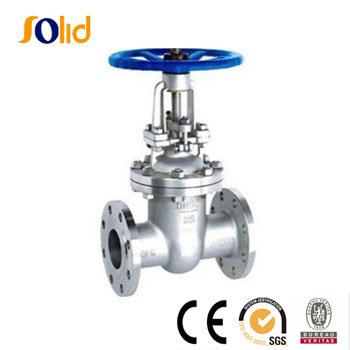

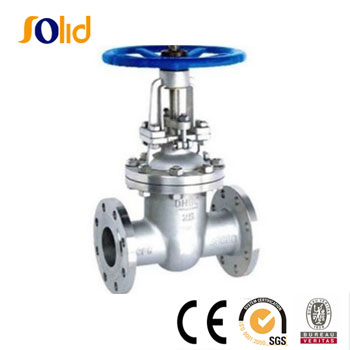

Size: DN15-DN1000
Material: GS-C25, CF8, CF8M, CF3, CF3M
Design and manufacture: DIN 3352
Face to face dimension: DIN 3202- F4/ DIN 3202- F5/ DIN 3202- F7
Pressure: PN16, PN25, PN40, PN64
Test and inspection: DIN 3230
| Nomina Diameter |
DN50~DN1000 or NPS2-NPS40 |
| Material |
A216 WCB, A352 LCB/LCC, A217 WC6/WC9, A351 CF8/CF8M |
| Nomina Pressure |
150LB/300LB |
| Connection |
Flange/Butt Weld |
| Seat Material |
Metal To Metal,13Cr,HF,Stellite, Soft Seat, Resilient |
| Operation |

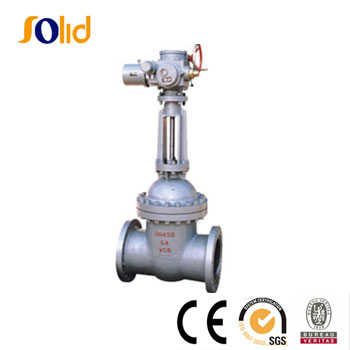

Worm Gear/Pneumatic/Electric/hydraulic/Handwheel |
| Medium |
Steam,Water,Oil,Acetic Acid,Nitric Acid and Other corrosion media |
| Certificate |
CE&ISO9001:2008 |
| Application |
Power Generation, Petroleum and Chemical, Refinery and Water Treatment |
| Design Standard |
API600, ASME B16.34 |
| Flange Standard |
ASME B16.5 |
| Face to face dimension |
ASME B16.10 |
| Pressure Test Standard |
API598 |
| Packing Details |
plywood case |
| Shipment Terms |
FOB/CIF/CFR/EXW,ETC |
If you want to know more details, please send an email to us to solidvalves@aliyun.com.
|
|
