Product Name:

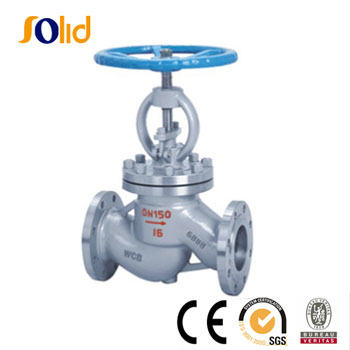

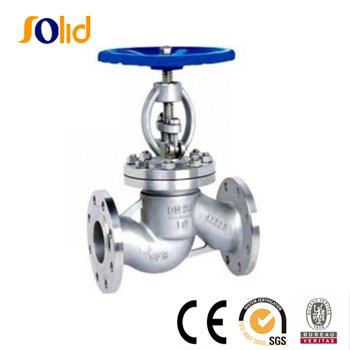

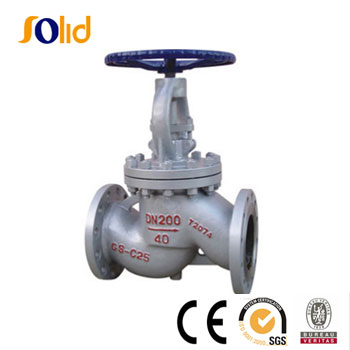

DIN Globe Valve
  • DIN Globe Valve
  • DIN Globe Valve
  • DIN Globe Valve
Describe:

Size: DN15-DN1000

Material: GS-C25, CF8, CF8M, CF3, CF3M

Design and manufacture: DIN 3356

Face to face dimension: DIN 3202

Pressure: PN16, PN25, PN40, PN64

Test and inspection: DIN 3230, EN12266


DIN Stainless Steel Globe Valve, maintains %100 tight sealing through the graphite gasket on the stainless steel disc moving perpendicular to the flow axis and seating on the machined metal seat inside the body. Its is used for steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties.



Parameter
Operating Pressure PN 16-64
Test Pressure Body 1.5 times
Seal 1.1 times
Working temperature T ≤200 ℃
Application for Water,oil,gas



Specification Details

Nominal diameter: 1/2"~24"(DN15~DN600)
Pressure range:Class150~2500(PN10~PN420)
End connection: RF, RTJ, BW
Working temperature:-29ºC~560ºC
Operation: handwheel, gear box, electric, etc.



If you want to know more details, please send an email to us to solidvalves@aliyun.com.
