Product Name:

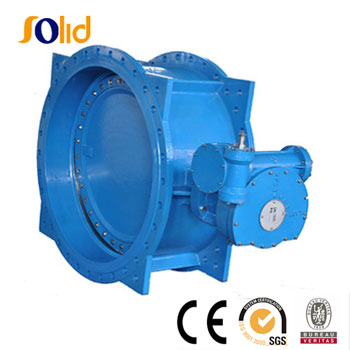

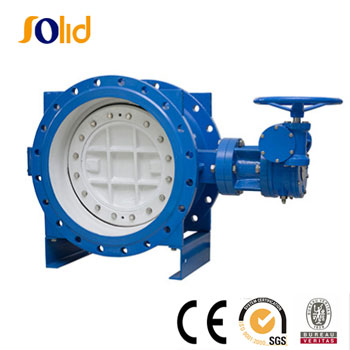

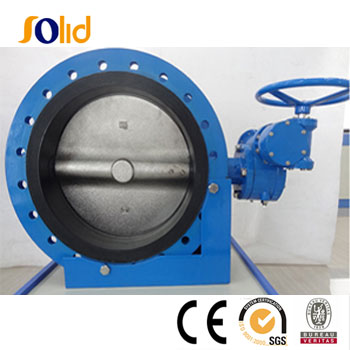

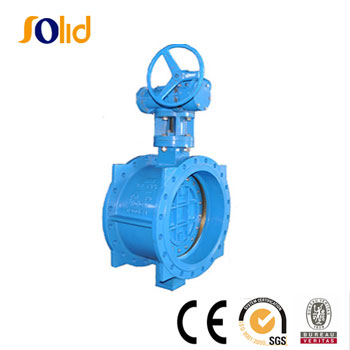

Double Flange Butterfly Valve
  • Double Flange Butterfly Valve
  • Double Flange Butterfly Valve
  • Double Flange Butterfly Valve
  • Double Flange Butterfly Valve
  • Double Flange Butterfly Valve
Describe:

Standard: EN593/ ISO 5752 /BS5155/AWWA C504

Flange drilling is according to DIN 2501, BS4504, ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

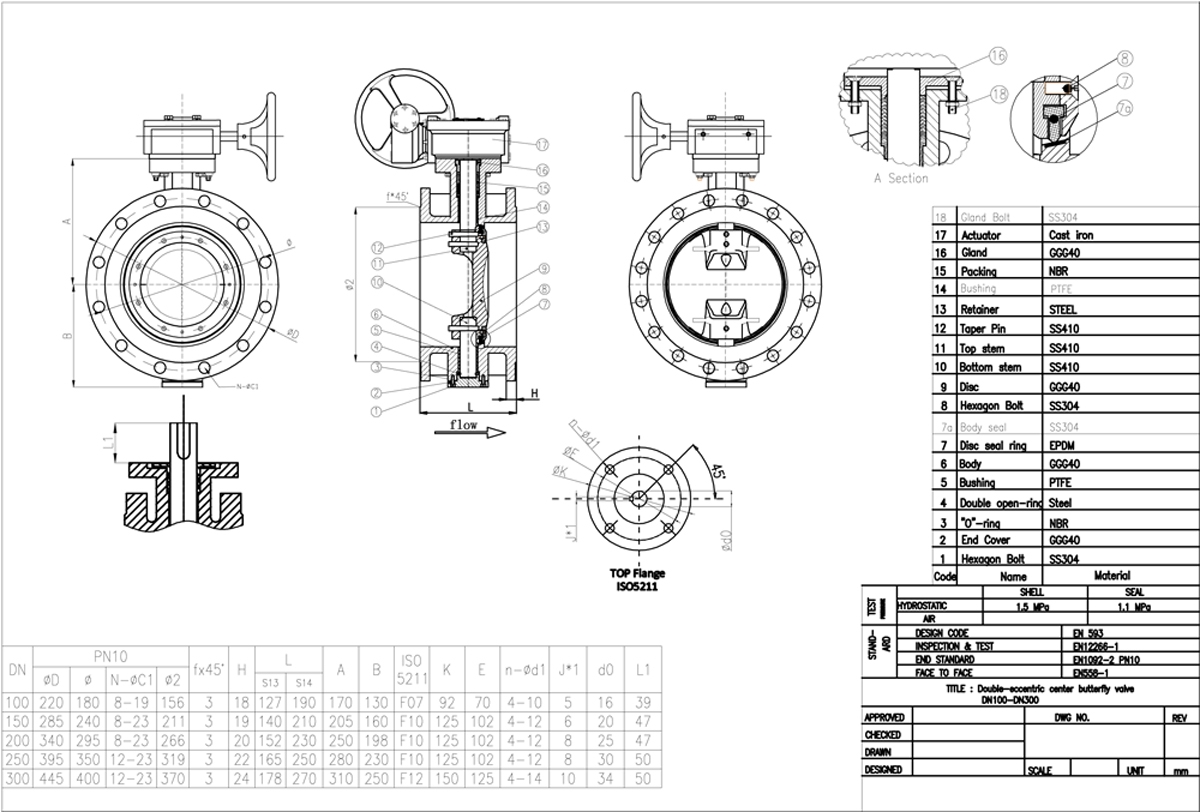

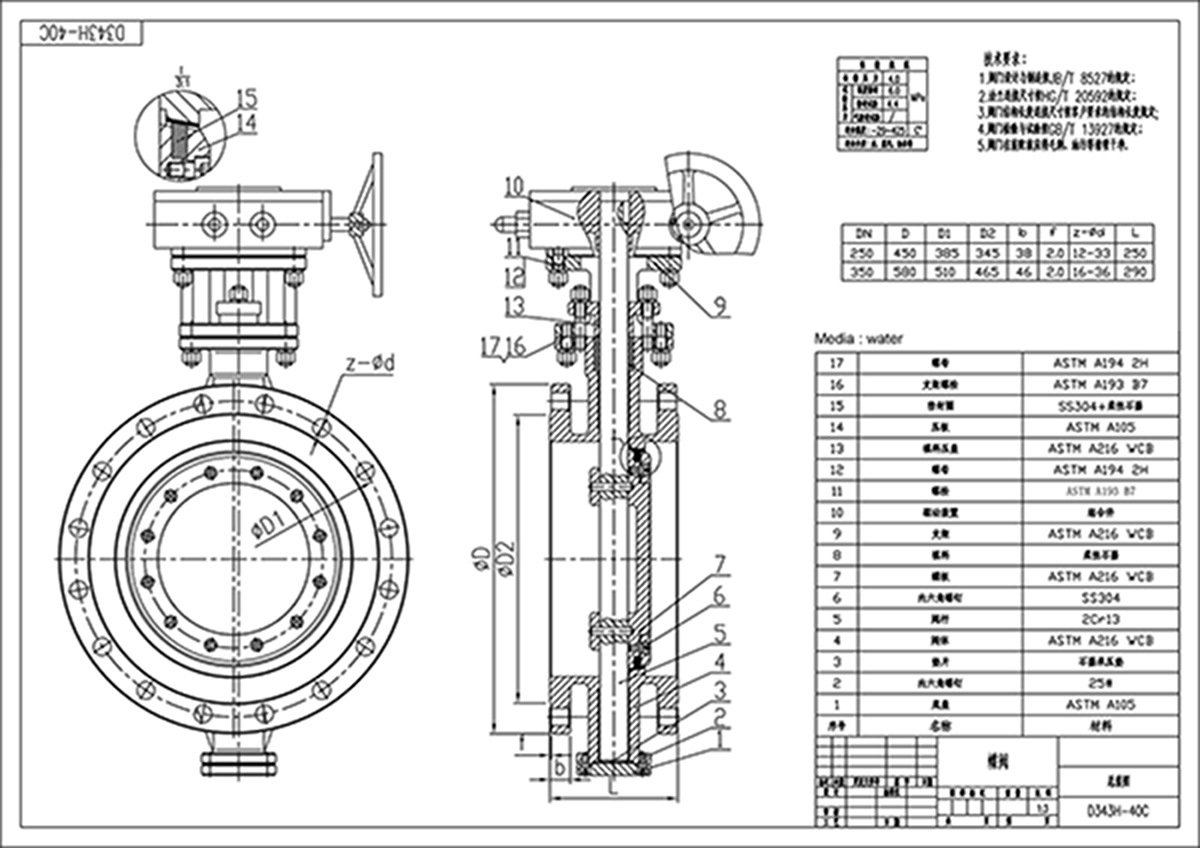

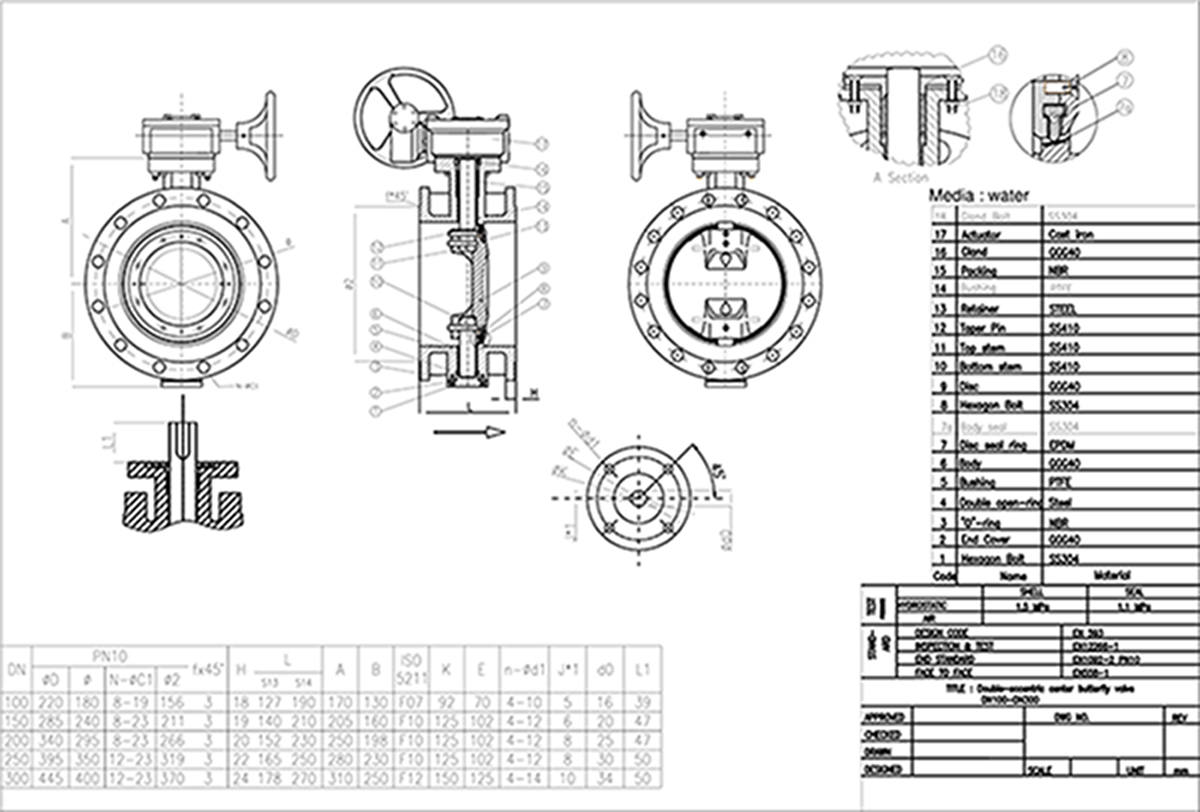

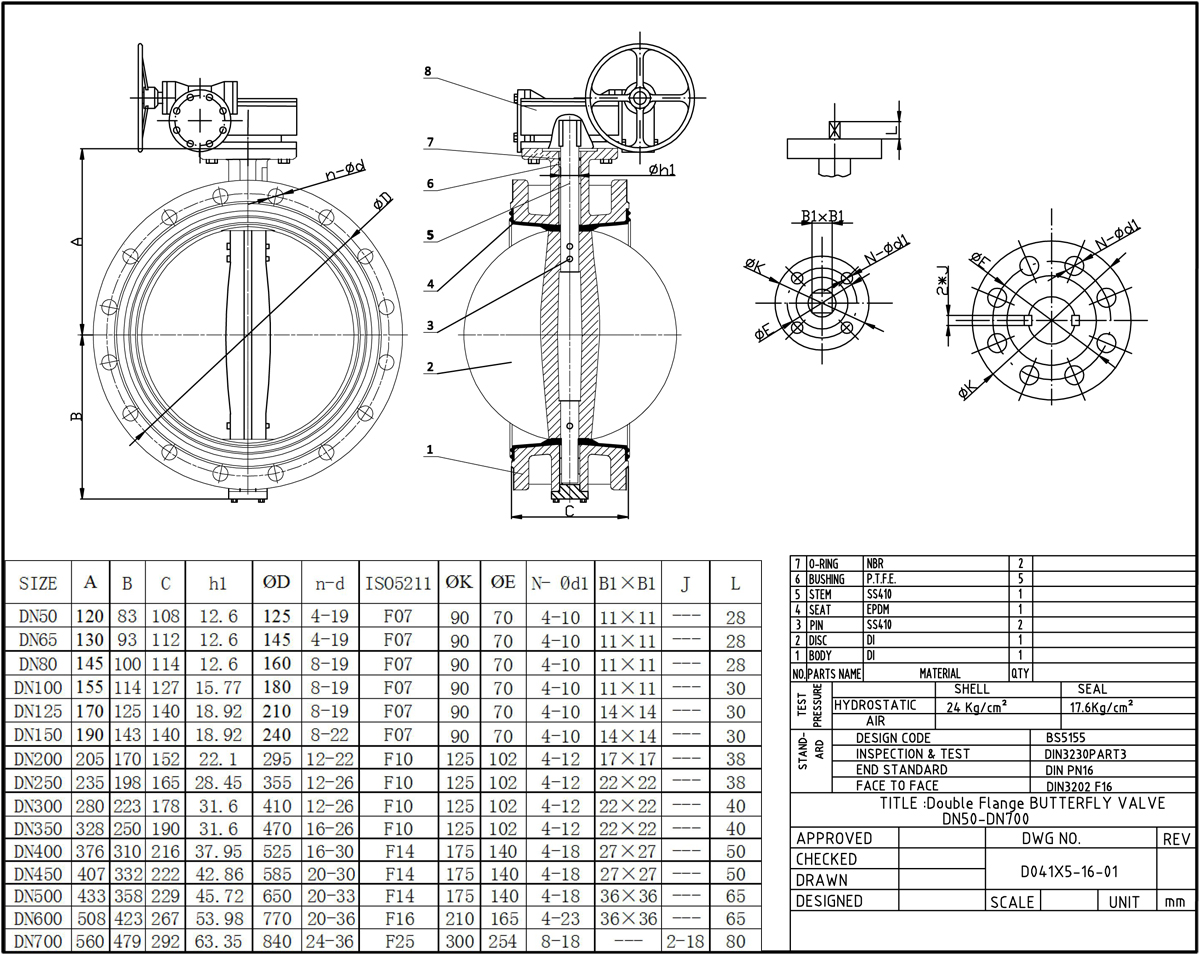

Type: Double Flange Eccentric, Double Flange Concentric

Material:

Body: DI/CI /Carbon Steel/Stainless Steel

Disc: DI/Stainless steel 304/316,AL-Bronze

Shaft: Stainless steel410/416/420 , Seat :EPDM/NBR

Coating: Internal and external with fusion bonded epoxy coating min250μm


If you want to know more details, please send an email to us to solidvalves@aliyun.com.
