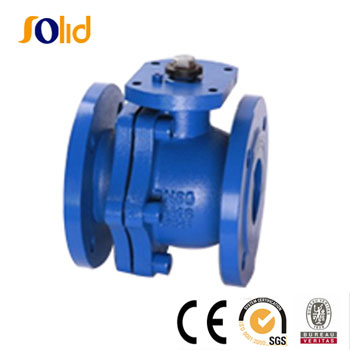

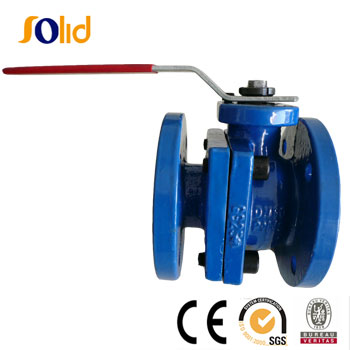

Cast Iron/Ductile Iron Ball Valve
- Standard: DIN3357, API 6D, JIS 7S-48
- Type: Full bore, flanged end/ Reduce bore, flanged end
- Material: Ductile iron GGG50/40 or cast iron, stem: stainless steel 2CR13, ball: 2CR13 or SS 304, seat: PTFE
- Coating: Internal and external with fusion bonded epoxy coating.
Standard |
DIN3357, API 6D, JIS 7S-48 |
Type |
Full bore, flanged end/ Reduce bore, flanged end |
Material |
Ductile iron GGG40/50 /Cast Iron GG25
stem: stainless steel 2CR13
ball: 2CR13 or SS 304
seat: PTFE
|
Coating |
Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting |
