Product Name:

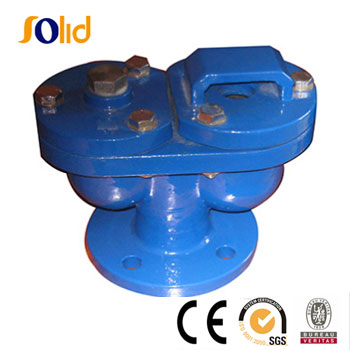

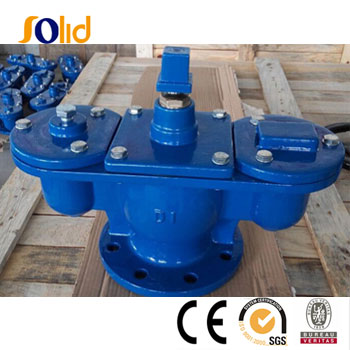

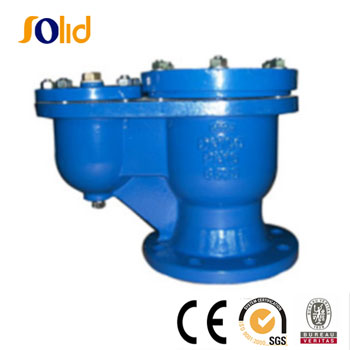

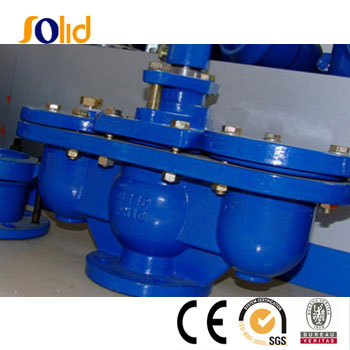

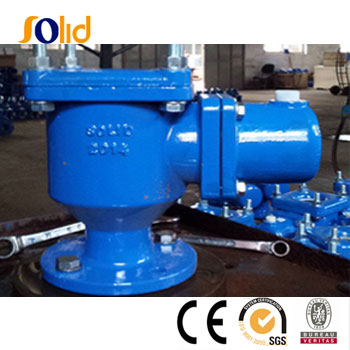

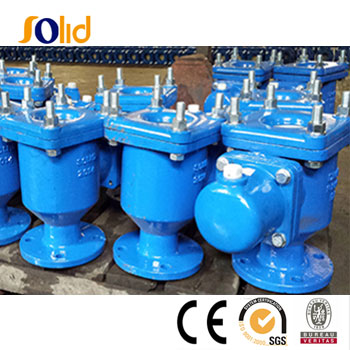

Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
Describe:

Flange drilled to EN1092-2

Standard: EN1074-4, BS, ANSI.

Working pressure: 10bar/16bar/25bar.

Testing pressure:

Shell: 15bar/24bar/37.5bar.

Seal: 11bar/17.6bar/27.5bar.

Material: Ductile iron GGG40/50 /Cast Iron GG25/Carbon Steel

Float ball: SS304, ABS or NBR.

Coating: Internal and external with fusion bonded epoxy coating. min250μm or liquid epoxy painting.


If you want to know more details, please send an email to us to info@cnsolid.com.
