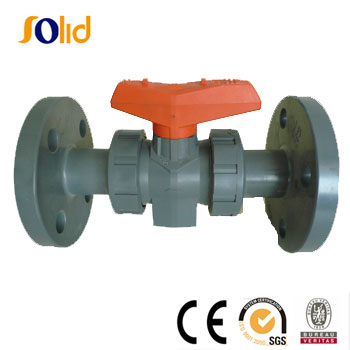

PVC flange ball valve
1. Material: U-PVC, C-PVC
2. size: DN15-DN150(1/2 inch~6inch)
3. flange connection: DIN PN10; ANSI CL 150; JIS 10K
4. ball material: PVC-U; PVC-C; PVDF; PPG; PPH
5. body material: PVC-U; PVC-C; PVDF; PPG; PPH
6. seat material: PTFE
7. operator: handlever
| Item Description |
PVC Flanged True Union Ball Valve |
| Valve Material |
Polyvinyl chloride ,PVC |
| Dimension range |
DN15~DN100 |
| Color details |
Blue/White/Dark Grey/Light Grey |
| How to connect |
Socket/thread/cement/thread |
| Pressures |
150psi |
| Media |
Water |
| Standard |
DIN, BS, ANSI, JIS; NPT, BSPT, CNS |
| Certifications |
ISO14001,ISO9001 |
| Packing |
carton, polybag or customized |

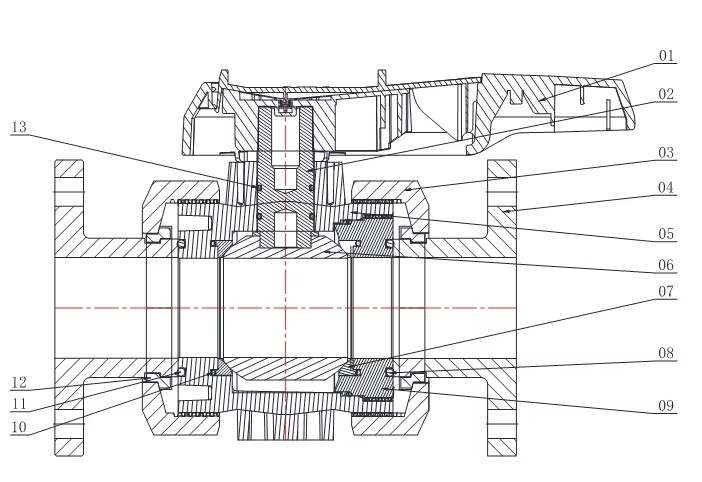

| MATERIAL |
| No. |
Parts |
Quantity |
Material |
| 01 |
Lever |
1 |
PVC-U/PP+GF30% |
| 02 |
Shaft |
1 |
PVC-U/PVC-C |
| 03 |
Nut |
2 |
PVC-U/PVC-C |
| 04 |
One piece flange |
2 |
PVC-U/PVC-C |
| 05 |
Body |
1 |
PVC-U/PVC-C |
| 06 |
Ball |
1 |
PVC-U/PVC-C |
| 07 |
Ball seat |
2 |
PTFE/TPE+PP |
| 08 |
O-ring1 |
2 |
EPDM/FPM |
| 09 |
Seal-Carrier |
1 |
PVC-U/PVC-C |
| 10 |
O-ring2 |
2 |
EPDM/FPM |
| 11 |
O-ring3 |
1 |
EPDM/FPM |
| 12 |
Fixed snap ring |
2 |
PVC-U/PVC-C |
| 13 |
O-ring4 |
2 |
EPDM/FPM |
If you want to know more details, please send an email to us to solidvalves@aliyun.com. |
|
| |
|
