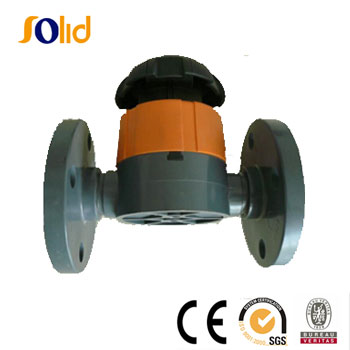

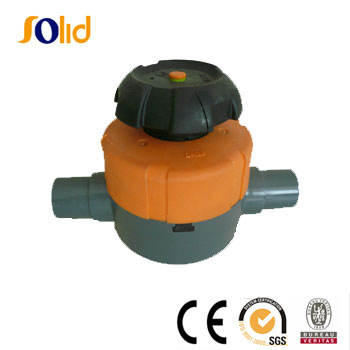

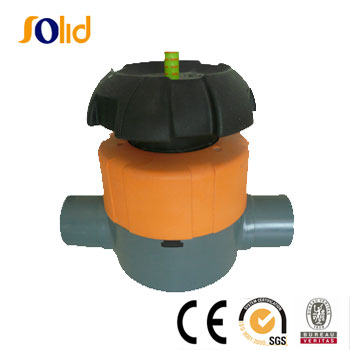

PVC diaphragm valve
1. Material: U-PVC, C-PVC
2. size: DN15-DN100(1/2 inch~4inch)
3. flange connection: DIN PN10; ANSI CL 150; JIS 10K
4. ball material: PVC-U; PVC-C; PVDF; PPG; PPH
5. body material: PVC-U; PVC-C; PVDF; PPG; PPH
6. diaphragm material: PTEE; FEP with EPDM cushion
7. operator: handwheel
| Name of product |

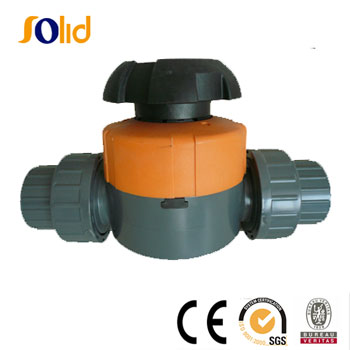

PVC True Union Diaphgram Valve |
| Main material |
CPVC/PVC-C |
| Specification range |
20mm-63mm;1/2'-2" |
| Valve color |
Light Grey and orange; other colors |
| To connect |
Socket; Glue connection; cement |
| Pressure range |
medium pressure; PN10, PN16 |
| Temperature of Media |
Medium Temperature |
| The standards |
ASTM/ANSI/GB/DIN/ISO4422 |
| Certificates |
ISO14001, ISO9001 |
| Joints |
Solvent Welding Joints |
| Media |
Water/liquid |
If you want to know more details, please send an email to us to solidvalves@aliyun.com.
|
|
