Determining the installation direction and position of Stainless Steel Y Strainers follows the core principles of ensuring filtration efficiency, facilitating maintenance and cleaning, and avoiding disruptions to pipeline system operation.

I. Determination of Installation Direction

The installation direction of a stainless steel Y strainer is determined by its structural characteristics. It is imperative that the medium flows from the outside to the inside of the filter screen. The key judgment and operational points are as follows:

1. Judgment based on arrow markings

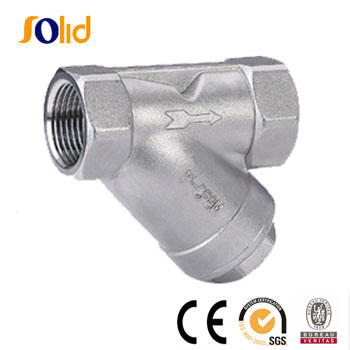

The valve body of the strainer is usually cast or painted with a medium flow direction arrow. During installation, ensure that the medium flow direction in the pipeline is completely consistent with the direction of the arrow. This orientation ensures that impurities in the medium are trapped on the outside of the filter screen, preventing direct impact of impurities on the screen, which could cause damage, and avoiding accumulation of impurities inside the screen that would lead to ineffective filtration.

2. Structural judgment when there are no markings

If there is no flow direction marking on the valve body, the direction can be determined by the position of the filter screen and the drain port: the open end of the filter basket in the Y-shaped structure should face the incoming medium flow direction, and the drain port should face downward or sideways. Conversely, if installed in the reverse direction, impurities will directly enter the inside of the filter screen, resulting in failure to filter effectively and potential blockage of the screen, which would stop medium flow.

3. Direction requirements for special scenarios

For media containing viscous impurities or large particles, install the strainer with the open end of the filter basket directly facing the medium flow direction to maximize the filtration area and reduce the localized impact of impurities on the screen.

II. Determination of Installation Position

The installation position should be comprehensively selected based on pipeline system functions, maintenance convenience, and working condition requirements, with priority given to the following key nodes:​

1. Upstream of the core equipment

This is the most critical installation position. The strainer should be installed upstream of precision equipment such as pumps, valves, flowmeters, and pressure gauges. The purpose is to intercept impurities in the medium in advance, preventing impurities from entering the equipment and causing wear, jamming, or blockage, thereby extending the service life of core equipment. For example, installing the strainer 1–2 times the pipe diameter distance in front of the pump inlet can effectively protect the pump impeller from damage by impurities.

2. Locations convenient for maintenance and drainage

Adequate maintenance space must be reserved: Leave an operating space of ≥ 30 cm around the strainer to facilitate disassembly of the drain plug, removal of the filter screen for cleaning or replacement.

Reasonable orientation of the drain port: During installation, ensure that the drain port of the Y-shaped structure faces downward or horizontally sideways; installation with the drain port facing upward is strictly prohibited. Downward installation allows for direct drainage, while sideways installation is suitable for space-constrained scenarios, preventing impurities from accumulating at the bottom of the valve body due to gravity and being unable to be discharged.

3. Prohibited installation locations

Do not install at dead ends or blind ends of the pipeline to prevent medium stagnation, which would lead to impurity accumulation and bacterial growth.

Avoid installation in areas exposed to direct high-temperature sunlight or low-temperature freezing conditions to prevent stress cracking of the stainless steel valve body caused by sudden temperature changes.

In high-pressure pipeline systems, do not install at pipeline welds or stress concentration areas to prevent leakage at joints due to vibration during operation.
