Home > product >cast steel valve>DIN Ball Valve

API steel valve DIN steel valve


Product Name:

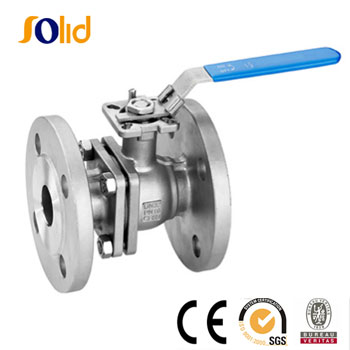

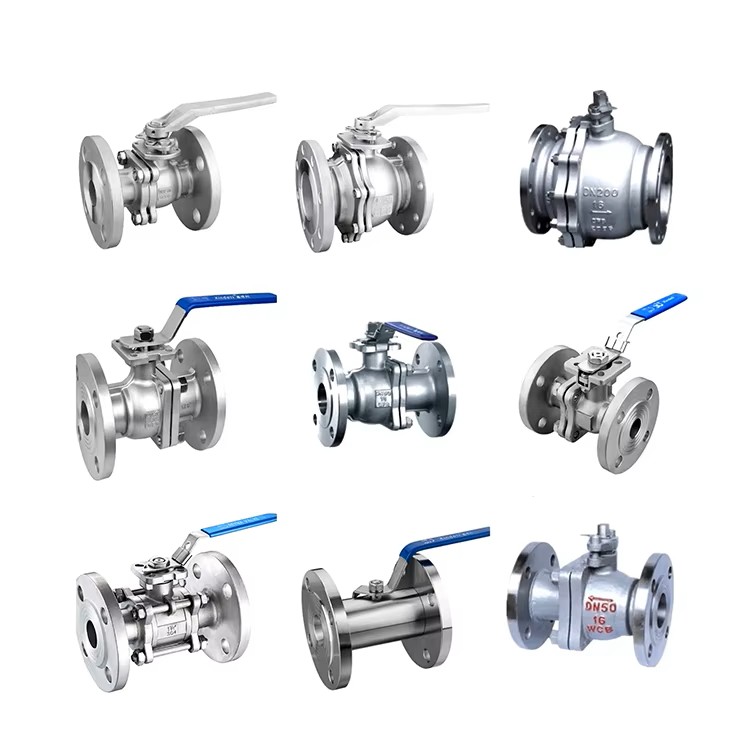

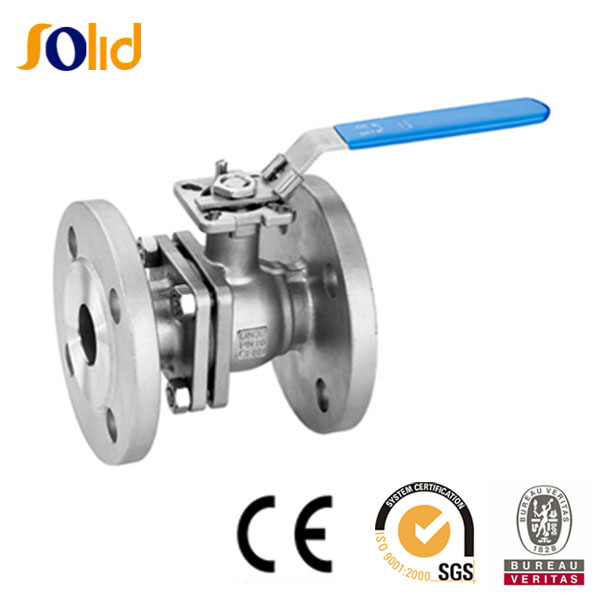

DIN Ball Valve
  • DIN Ball Valve
  • DIN Ball Valve
  • DIN Ball Valve
Describe:

Size: DN15-DN300

Material: WCB, CF8, CF8M, CF3, CF3M

Two/Three-Piece body, floating ball

Face to face dimension: DIN 3202 F4/F5

Flanged end: DIN 2533

Pressure: PN16, PN25, PN40, PN64

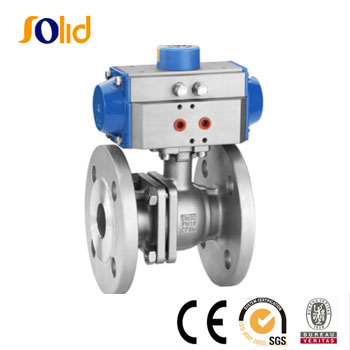

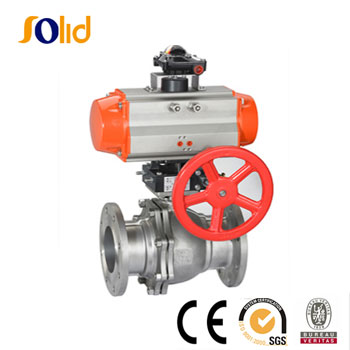

Type of operation: lever, worm gear actuator, electric actuator, pneumatic actuator to ISO 5211 standard.


Certificate CE
Port Full Port
Working Pressure 1.0-42Mpa
Connection Ends Flange
Working Temp -40ºC~300ºC
Suitable Medium Water, Steam, Oil and some corrosive liquid etc.
Seal PTFE, RPTFE, PPL
Body piece One/Two/Three PC type





















If you want to know more details, please send an email to us to solidvalves@aliyun.com.
