Product Name:

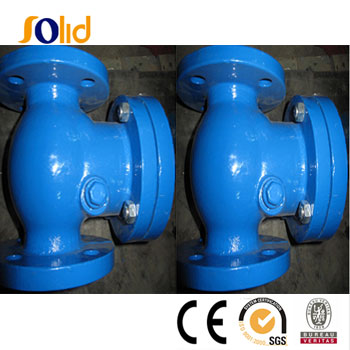

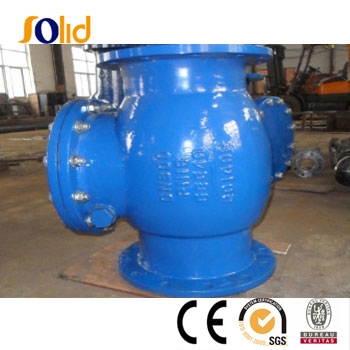

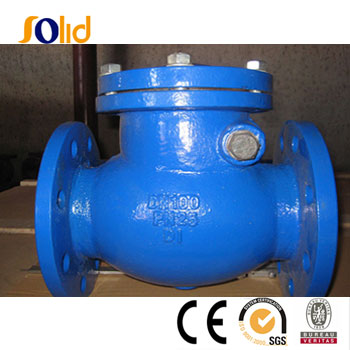

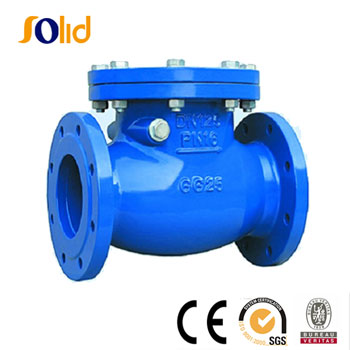

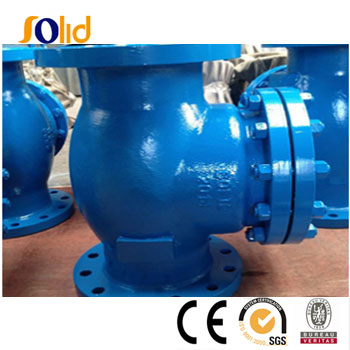

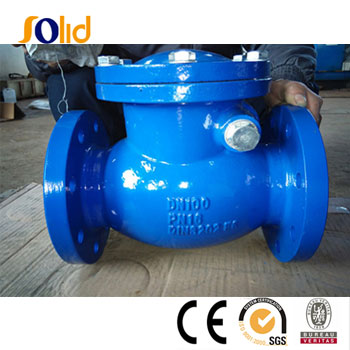

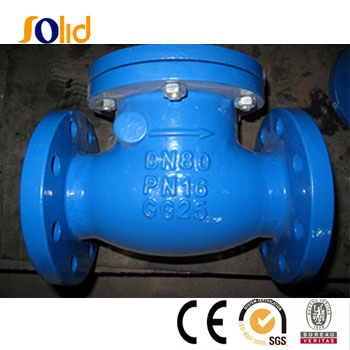

Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
  • Swing Type Check Valve
Describe:

Standard: BS5153,DIN3202-F6,DIN3201-F1, AWWA C508

Flange drilling is according to BS4504, DIN2501, and ANSI B16.1

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

Material: Ductile iron GGG40/50 or Cast IronGG25

Disc seat ring: Brass/Bronze/Stainless steel/ EPDM

Body seat ring: Brass/Bronze/Stainless steel

Bolt and Nuts: Carbon Steel with zinc plated or SS304,316

Coating: Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting



Standard BS5153,DIN3202-F6,DIN3201-F1, AWWA C508
Type Swing Type , Lift Type, Dual Plate type, Ball Check type
Material Ductile iron GGG40/50 or Cast IronGG25
Disc seat ring :Brass/Bronze/Stainless steel/ EPDM
Body seat ring : Brass/Bronze/Stainless steel
Bolt and Nuts : Carbon Steel with zinc plated or SS304,316
Coating Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting



If you want to know more details, please send an email to us to solidvalves@aliyun.com.
