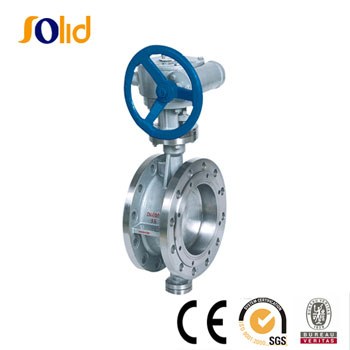

High-performance Bi-directional metal-seated Butterfly valve

Material: ASTM A216 WCB, ASTM A351 CF8，ASTM A351 CF8M
Size: 2”-80”
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB
Temperature rang: －196℃-600℃
Design and manufacture: API609, ASME B16.34
Face to face dimension: API 609, ISO 5752
Connection: wafer type, lug type, flange type
Test and inspection: API 598, ISO 5208
Application: water, oil, natural gas

STANDARDS

Flanged ends: ASME B16.5, ASME B16.47
Top flange: ISO 5211
Inspection & testing: API598
Pressure-temperature rating: ASME B16.34
Fire safe: API607
Operation: manual, pneumatic, electric, hydraulic

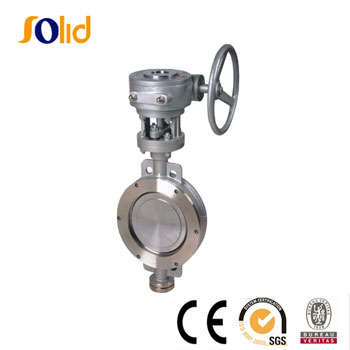

Wafer offset butterfly valve is one type of triple offset butterfly valves, which is normally used in the high pressure and high temperature pipeline. The triple offset butterfly valves are normally with cast steel and stainless steel. Not like rubber lined butterfly valve, triple offset butterfly valve is normally applicable to oil, gas, steam, sewage, corrosive mediums with high pressure and temperature. According to the ends connection type, it can be divided into wafer triple offset butterfly valve, lug triple offset butterfly valve and flanged triple offset butterfly valve. Normally, the triple offset butterfly valve is metal seated, but we can produce it with soft seated according to customer’s request. The double flanged triple offset butterfly valve is suitable for 90° on-off operation and regulation service. Flowspec Luokai can manufacture the wafer offset butterfly valve according to API609 standard with sizes of 2 inch~40inch (DN50~1500mm).
